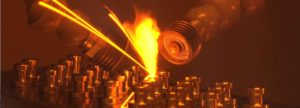

CNC LASER WELDING IS USED EXTENSIVELY IN MEDICAL DEVICE ASSEMBLY PROCESSES

CNC laser welding is a reliable method for joining multiple medical device components in butt or lap joint configurations.

CNC LASER WELDING SERVICES

Many of our customers have a need for CNC Laser Micro Welding. To accommodate our customers, we utilize a type of laser called an Nd:YAG laser. It’s named for the synthetic transparent crystal material that is at the core of the laser; triply ionized neodymium (Nd3) and yttrium aluminum garnet (YAG).

Marshall has extensive experience utilizing CNC laser welding in joining machined medical components. In many cases, CNC laser welding is the preferred method of assemble, because no new material is introduced into the process. It is also fast, offering high productivity. Excess heat doesn’t accumulate into the components being welded because the beam is precisely focused at the joint being welded. Because the laser is CNC driven, it is very accurate and repeatable.

Laser welding introduces a minimal amount of heat to the material, crediting the process with maximizing the depth of the weld. The minimized heat affected zone (HAZ), also contributes to minimized part distortion.

Often efficiencies can be gained by laser welding two or more components together rather than machining one larger component out of a single piece of raw material. For example, it might be a better proposition to butt-weld a tube to the end of a rod rather than machining a deep axial hole into the end of a solid rod. The optimal time to take advantage of CNC laser welding options is in the design stage of a component or assembly.

CNC Laser Welding of Hub to Cannula

CNC Laser Welding

CNC Laser Welding is one of many methods Marshall uses for the assembly of components within medical device manufacturing.

Our other Capabilities

swiss machines for fast cycle times

Machining Plastics

We machine components for several filtration companies, utilizing a multitude of plastic materials in a variety of diameters and lengths.

Marshall Manufacturing Capabilities laser Machining capabilities

CNC Laser Tube Machining

Marshall offers CNC Laser Tube Machining. As a medical device manufacturer, our machines can produce highly intricate designs.

swiss machines for fast cycle times

CNC Swiss Machining

Swiss machine are capable of multiple operations, including; turning, milling, drilling, threading and additional operations.

CNC Wire EDM generating slots into medical devices

CNC Wire EDM

Within Medical Device Manufacturing, Wire EDM is often utilized for cutting slots and grooves in multiple stacked parts.

Marshall Manufacturing Capabilities - CNC turning machine in tool room

CNC Tuning and Milling

CNC Turning and CNC Milling are typically dedicated to toolmaking, which is part of Marshall’s total capability set.

Press Releases - medical assembly

Medical Assembly

Marshall employs a variety of methods for the assembly of components, including CNC laser welding, press fitting and epoxy.

LASER WELDING AT MARSHALL MANUFACTURING

Please consider Marshall for your next precision machined welding project. Our engineering team will help you through every aspect of the process; from prototyping, validation and into production.
